Creating ASP.NET MVC 5 Application using Entity Framework 6 and Identity with CRUD Operations on visual studio 2015 - Part 2

This is the part-2  of creating ASP.NET MVC 5 application using entity framework and identity with crud operations from scratch. Before creating entity framework model first create your SQL server database. For SQL server database you need  to install the SQL server 20118/2012/2014.  If you have any query please feel free and post a comment right below. Other part of series:

1. Creating ASP.NET MVC 5 project Part-1?
2. Creating SQL Server database Part-2?
3. Creating Entity Framework project Part-3 ?
4. Customize the default template of ASP.NET MVC 5 Part-4 ?
5. How to add a controller and view Part-5 ?
6. How to Add Model Part-6 ?
7. How to make a patient registration form Part-7?

1. Creating your SQL server database

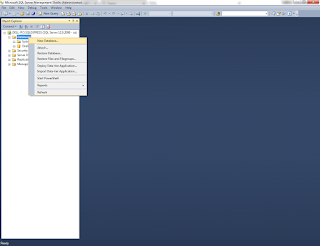

• Let's create a SQL database, open your SQL server and right click on Databases then go to the New database option.

• New database window will appear then simply enter the name of database HIMS.DB and click OK.

• Your database will be appear on the left side if not then refresh the database. Add a table in your database by right clicking on the tables and go to table.

• So let's create Patient table by entering all the attributes of Patient. Then simply save the table (Ctrl+S) and enter the name of table Patient then click OK. Refresh the database your Patient table is created successfully.

• Like a Patient table create a Country table e.g.

• Province table.


• District table.


• City Table.

• If you know how to create a database in SQL server then simply copy the following script and paste it into new query window finally run the query and refresh the database. Your database is created successfully.
  USE [master] GO
  /****** Object: Database [HIMS.DB] Script Date: 9/11/2017 3:49:33 PM ******/
  CREATE DATABASE [HIMS.DB]
  CONTAINMENT = NONE
  ON PRIMARY
  ( NAME = N'HIMS.DB', FILENAME = N'C:\Program Files\Microsoft SQL Server\MSSQL12.SQLEXPRESS\MSSQL\DATA\HIMS.DB.mdf' ,
  SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
  LOG ON
  ( NAME = N'HIMS.DB_log', FILENAME = N'C:\Program Files\Microsoft SQL
  Server\MSSQL12.SQLEXPRESS\MSSQL\DATA\HIMS.DB_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
  GO
  ALTER DATABASE [HIMS.DB] SET COMPATIBILITY_LEVEL = 120
  GO
  IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
  begin
  EXEC [HIMS.DB].[dbo].[sp_fulltext_database] @action = 'enable'
  end
  GO
  ALTER DATABASE [HIMS.DB] SET ANSI_NULL_DEFAULT OFF
  GO
  ALTER DATABASE [HIMS.DB] SET ANSI_NULLS OFF
  GO
  ALTER DATABASE [HIMS.DB] SET ANSI_PADDING OFF
  GO
  ALTER DATABASE [HIMS.DB] SET ANSI_WARNINGS OFF
  GO
  ALTER DATABASE [HIMS.DB] SET ARITHABORT OFF
  GO ALTER DATABASE [HIMS.DB] SET AUTO_CLOSE OFF GO
  ALTER DATABASE [HIMS.DB] SET AUTO_SHRINK OFF
  GO
  ALTER DATABASE [HIMS.DB] SET AUTO_UPDATE_STATISTICS ON
  GO
  ALTER DATABASE [HIMS.DB] SET CURSOR_CLOSE_ON_COMMIT OFF
  GO
  ALTER DATABASE [HIMS.DB] SET CURSOR_DEFAULT GLOBAL
  GO
  ALTER DATABASE [HIMS.DB] SET CONCAT_NULL_YIELDS_NULL OFF
  GO
  ALTER DATABASE [HIMS.DB] SET NUMERIC_ROUNDABORT OFF
  GO
  ALTER DATABASE [HIMS.DB] SET QUOTED_IDENTIFIER OFF
  GO
  ALTER DATABASE [HIMS.DB] SET RECURSIVE_TRIGGERS OFF
  GO
  ALTER DATABASE [HIMS.DB] SET DISABLE_BROKER
  GO
  ALTER DATABASE [HIMS.DB] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
  GO
  ALTER DATABASE [HIMS.DB] SET DATE_CORRELATION_OPTIMIZATION OFF
  GO
  ALTER DATABASE [HIMS.DB] SET TRUSTWORTHY OFF
  GO
  ALTER DATABASE [HIMS.DB] SET ALLOW_SNAPSHOT_ISOLATION OFF
  GO
  ALTER DATABASE [HIMS.DB] SET PARAMETERIZATION SIMPLE
  GO
  ALTER DATABASE [HIMS.DB] SET READ_COMMITTED_SNAPSHOT OFF
  GO
  ALTER DATABASE [HIMS.DB] SET HONOR_BROKER_PRIORITY OFF
  GO
  ALTER DATABASE [HIMS.DB] SET RECOVERY SIMPLE
  GO
  ALTER DATABASE [HIMS.DB] SET MULTI_USER
  GO
  ALTER DATABASE [HIMS.DB] SET PAGE_VERIFY CHECKSUM
  GO
  ALTER DATABASE [HIMS.DB] SET DB_CHAINING OFF
  GO
  ALTER DATABASE [HIMS.DB] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
  GO
  ALTER DATABASE [HIMS.DB] SET TARGET_RECOVERY_TIME = 0 SECONDS
  GO
  ALTER DATABASE [HIMS.DB] SET DELAYED_DURABILITY = DISABLED
  GO
  USE [HIMS.DB]
  GO
  /****** Object: Table [dbo].[City] Script Date: 9/11/2017 3:49:33 PM ******/
  SET ANSI_NULLS ON
  GO
  SET QUOTED_IDENTIFIER ON
  GO
  CREATE TABLE [dbo].[City](
  [Id] [int] IDENTITY(1,1) NOT NULL,
  [DistrictId] [int] NULL,
  [Name] [nvarchar](100) NULL,
  CONSTRAINT [PK_City] PRIMARY KEY CLUSTERED
  (
  [Id] ASC
  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS =
  ON) ON [PRIMARY]
  ) ON [PRIMARY]
  GO
  /****** Object: Table [dbo].[Country] Script Date: 9/11/2017 3:49:33 PM ******/
  SET ANSI_NULLS ON
  GO
  SET QUOTED_IDENTIFIER ON
  GO
  SET ANSI_PADDING ON
  GO
  CREATE TABLE [dbo].[Country](
  [CountryID] [int] IDENTITY(1,1) NOT NULL,
  [Name] [varchar](50) NULL,
  [Code] [nvarchar](50) NULL,
  CONSTRAINT [PK_TblCountry] PRIMARY KEY CLUSTERED
  (
  [CountryID] ASC
  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS =
  ON) ON [PRIMARY]
  ) ON [PRIMARY]
  GO
  SET ANSI_PADDING OFF
  GO
  /****** Object: Table [dbo].[District] Script Date: 9/11/2017 3:49:33 PM ******/
  SET ANSI_NULLS ON
  GO
  SET QUOTED_IDENTIFIER ON
  GO
  SET ANSI_PADDING ON
  GO
  CREATE TABLE [dbo].[District](
  [Id] [int] IDENTITY(1,1) NOT NULL,
  [Name] [varchar](50) NULL,
  [ProvinceId] [int] NULL,
  CONSTRAINT [PK_TblDistrict] PRIMARY KEY CLUSTERED
  (
  [Id] ASC
  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS =
  ON) ON [PRIMARY]
  ) ON [PRIMARY]
  GO
  SET ANSI_PADDING OFF
  GO
  /****** Object: Table [dbo].[Patient] Script Date: 9/11/2017 3:49:33 PM ******/
  SET ANSI_NULLS ON
  GO
  SET QUOTED_IDENTIFIER ON
  GO
  CREATE TABLE [dbo].[Patient](
  [Id] [int] NOT NULL,
  [MRN] [nvarchar](50) NULL,
  [FName] [nvarchar](50) NOT NULL,
  [MName] [nvarchar](50) NULL,
  [LName] [nvarchar](50) NULL,
  [Gender] [nvarchar](8) NULL,
  [DOB] [datetime] NULL,
  [Marital_Status] [nvarchar](50) NULL,
  [CountryId] [int] NULL,
  [ProvinceId] [int] NULL,
  [DistrictId] [int] NULL,
  [CityId] [int] NULL,
  [PrimaryAddress] [nvarchar](100) NULL,
  [SecondaryAddress] [nvarchar](100) NULL,
  [MobilePhone] [nvarchar](50) NOT NULL,
  [WorkPhone] [nvarchar](50) NULL,
  CONSTRAINT [PK_Patient] PRIMARY KEY CLUSTERED
  (
  [Id] ASC
  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS =
  ON) ON [PRIMARY]
  ) ON [PRIMARY]
  GO
  /****** Object: Table [dbo].[Province] Script Date: 9/11/2017 3:49:33 PM ******/
  SET ANSI_NULLS ON
  GO
  SET QUOTED_IDENTIFIER ON
  GO
  SET ANSI_PADDING ON
  GO
  CREATE TABLE [dbo].[Province](
  [Id] [int] IDENTITY(1,1) NOT NULL,
  [Name] [varchar](50) NULL,
  [CountryId] [int] NULL,
  CONSTRAINT [PK_TblProvince] PRIMARY KEY CLUSTERED
  (
  [Id] ASC
  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS =
  ON) ON [PRIMARY]
  ) ON [PRIMARY]
  GO
  SET ANSI_PADDING OFF
  GO
  USE [master]
  GO
  ALTER DATABASE [HIMS.DB] SET READ_WRITE
  GO
• In part 3 learn how to create entity model and how to connect entity model with SQL server.
